High-performance Single-Channel Loading Magazine
Ideal for small and medium-sized batches

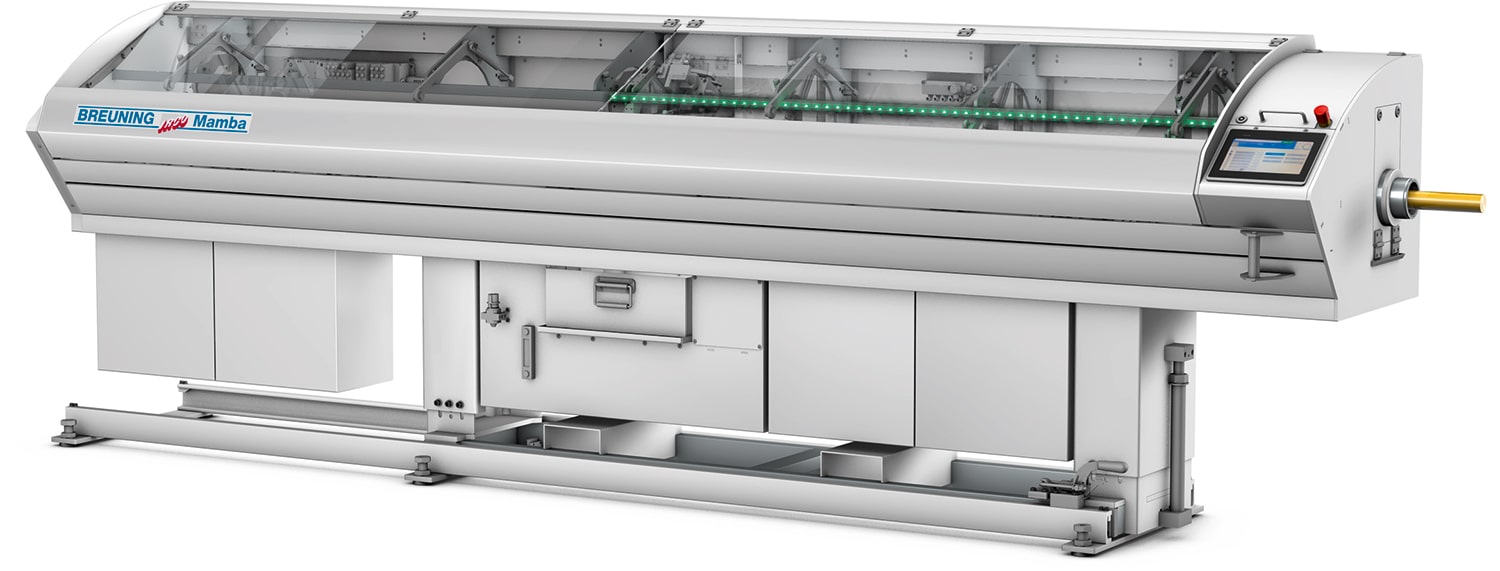

Mamba
Application area:
- Ideal for small and medium-sized batches
Properties:
- Extremely short changeover time at the touch of a button
- Maximum running smoothness, hydrodynamic bearing, 360° closed guide channels
- Further developed oil flow
- High operating comfort thanks to a 18 cm (7″) widescreen touch display
- Process-reliable feeding of rotationally symmetrical profile material
- Safe reloading in automatic operation
- New quick-change guide system
- Reduced space requirement
- Modular stocking system
Working range:
- Round material, diameters from 5 to 70 mm
- Bar length 3000 mm (4000 mm)
Special features:
- Easy replacement of the spindle liner tubes thanks to axial slide of the magazine
- Process-integrated remnant disposal through the machine (optionally by the magazine)
- Machine-protecting, vibration-absorbing design
Hydrodynamic bar guiding
Automatic disposal of the bar remnant by optional remnant retraction
Optional: Centering steady rest between guide channel and spindle filler tube
Two-part guide segment with clip fastening
Combination steady rest with rollers for round material Ø > 23 mm
Combination steady rest with jaws for profile and round material Ø < 23 mm
In order to optimize your manufacturing process we are happy to customize the loader to your respective operational situation. Thanks to the modular construction of our serial products we are able to cover a large number of application scenarios, thus combining the highest-possible quality in the series with highly specific, individual solutions.
Geometries to be processed:
Further geometries upon request:
