Product Overview

Alle anzeigen

All Loading magazines for long bars Loading magazines for short bars Automated loading of workpieces Automated unloading of workpieces Steady rest centre Accessories

Material-Ø: from 5 to 130 mm
Material lengths: 3.000 / 4.000 / 6.000 (10.000) mm (other lengths on request)

PROFImat

Loading magazines for long bars

Material-Ø: 5 to 51 mm
Material lengths: 3.000 / 4.000 / 6.000 mm (other lengths on request)

ecoPROFI

Loading magazines for long bars

Material-Ø: from 5 to 130 mm
Material lengths: 3.000 / 4.000 / 6.000 mm (other lengths on request)

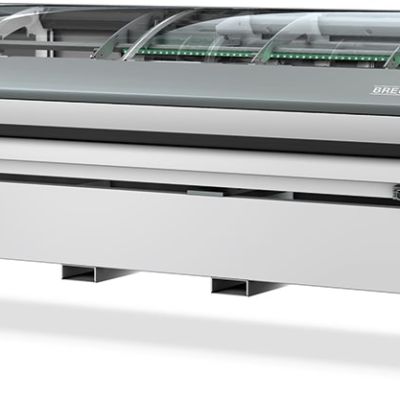

SiMag

Loading magazines for long bars

Material-Ø: from 3 to 36 mm
Material lengths: from 3.200 and 4.200 mm, up to 600 mm remnant bar length

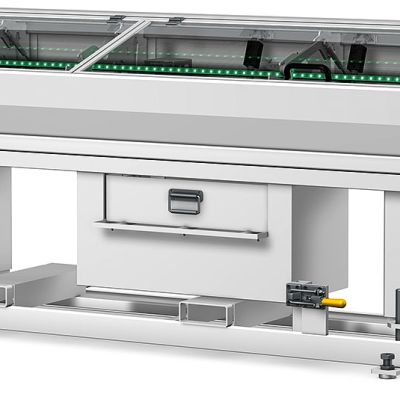

MiMo II

Two-channel loading magazine for long bars and short bars

Material Ø: from 20 to 150 mm
Workpiece lengths: up to 6.000 mm

Steady rest guidance LF

Extension of the lathe spindle

Round material-Ø: from 10 mm (optional 6 mm) to 104 mm, quadrangle minimum edge length: 6 mm, maximal enveloping circle: 102 mm, bar lengths: of 300 to 1200/1600 mm

ILS-MUK 100

Multi-universal short-bar automatic loader

Round material Ø: 4 to 50 mm,
bar lengths: 100 to 1,200 mm,
maximum material lengths limited by spindle length

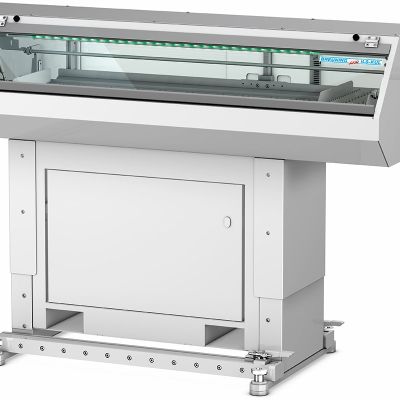

ILS-KUL

Loading magazines for short bars

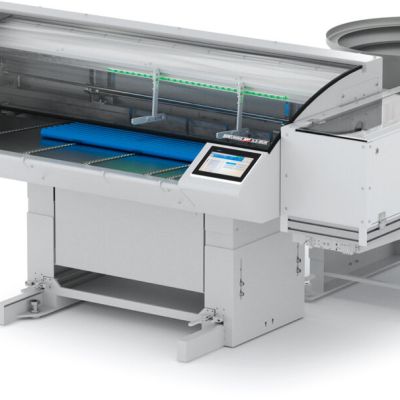

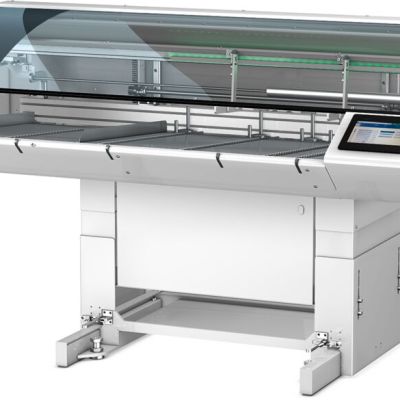

ILS-MUK IV WBS

Workpiece loading station

Round material-Ø: maximum 80 / 100 mm, bar lengths: maximum 800 / 1.200 mm (other lengths available upon request)

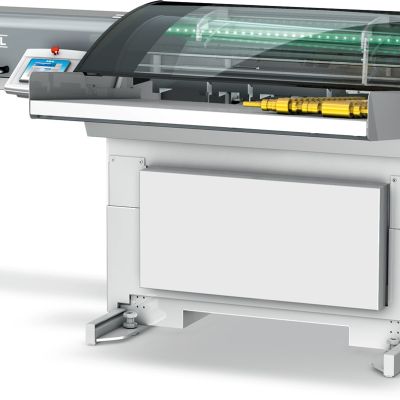

ILS-RBL

Automatic workpiece loader with chute

Round material-Ø: maximum 80 / 100 mm, bar lengths: maximum 800 / 1.200 mm (other lengths available upon request)

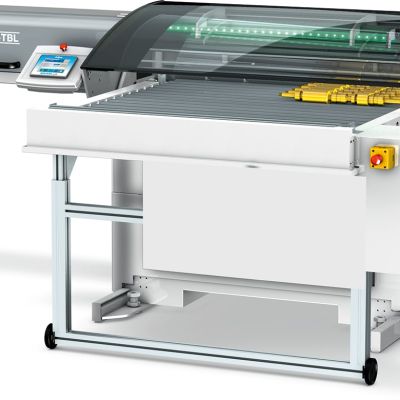

ILS-TBL

Automatic workpiece loader with indexed conveyor

Saw cuttings Ø 6 – 50 mm, blanks on request. Shaft depth: 1000 mm, max. load capacity 90 kg

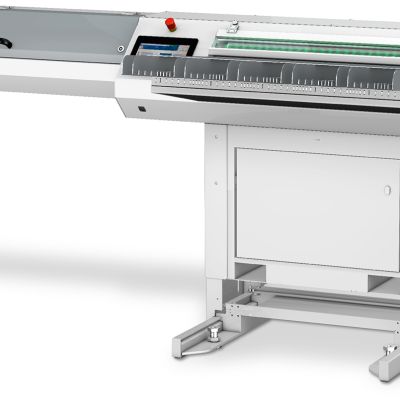

ILS-Speed

Workpiece quick-loading machine

Round material-Ø max. 80 / 100 mm, bar lengths max. 800 / 1200 mm (other lengths available upon request)

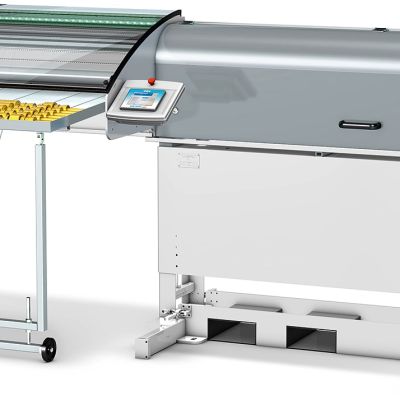

ILS-REX

Automatic lathe unloading system with chute

Round material-Ø max. 80 / 100 mm, bar lengths max. 800 / 1200 mm (other lengths available upon request)

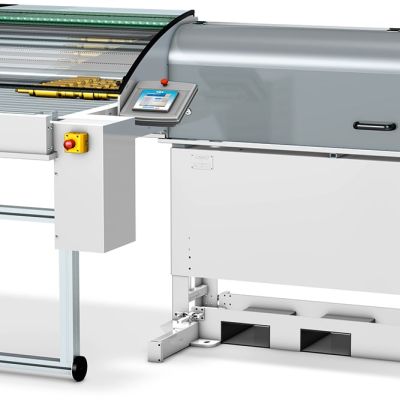

ILS-TEX

Automatic lathe unloading system with indexed conveyor

Round material diameters: 5 bis 80 mm
Bar lengths: 2.000 / 3.000 / 4.000 / 6.000 (10.000) mm

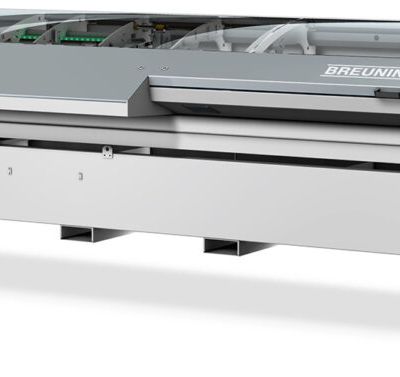

SiMag ERV

Unloading magazine

Material-Ø: 6 bis max. 76 mm
Material length: 10 bis max. 180 mm
Maximum part weight: 4,5 kg

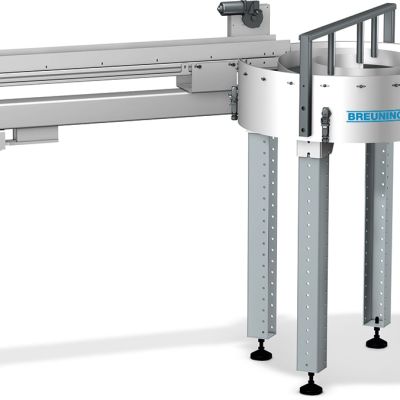

ITS Finished part storage

Transport and store sensitive workpieces

Round material-Ø from 20 mm to 80 mm, bar lengths 3.000 / 4.000 / 6.000 mm (10000 mm), other lengths available upon request

IBU bundle loader

External bar storage

Extension of the spindle to 1.600 mm
3,500 rpm < Ø 75, 3,500 rpm > Ø 75

Spindle extension

For lathes and machining centres

Material-Ø: from 20 to 125 mm
Material lengths: up to 6.000 mm

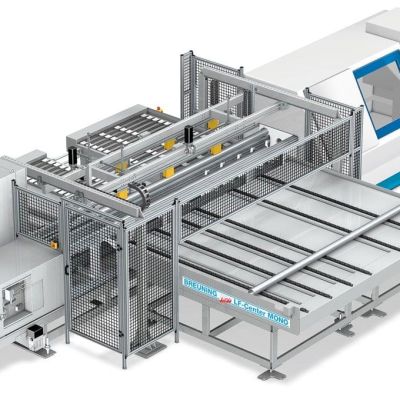

SR-Center MONO

Steady rest centre

Material-Ø: from 20 to 125 mm
Workpiece lenghts: up to 6.000 mm

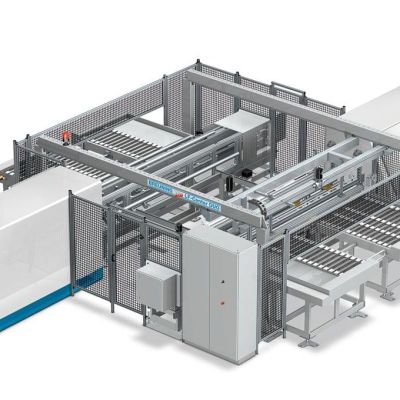

SR-Centre DUO

Steady rest centre

Material-Ø: from 20 to 125 mm
Workpiece lenghts: up to 4.000 mm

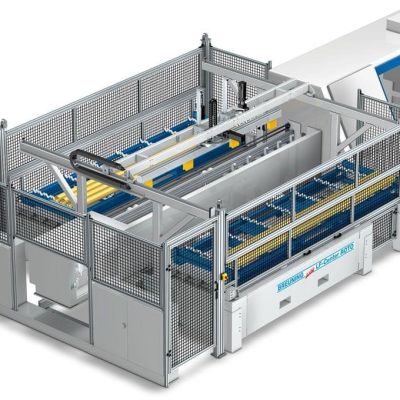

LF-Center ROTO

Steady rest centre

Available for nearly all types of turning machinery

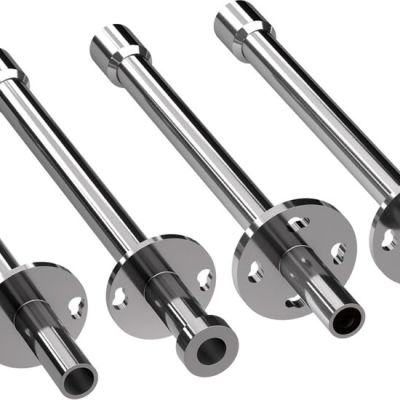

Spindle liner tubes

Individual spindle liner tubes for precision turning from bar stock

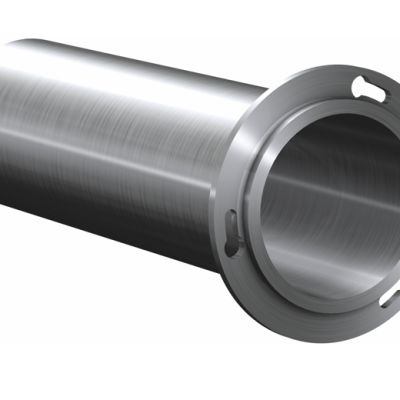

Produkt_Verlängerung-Kühlmittel-Auffang

Specially adapted extensions coolant collector

Extension coolant collector

Specially adapted extensions

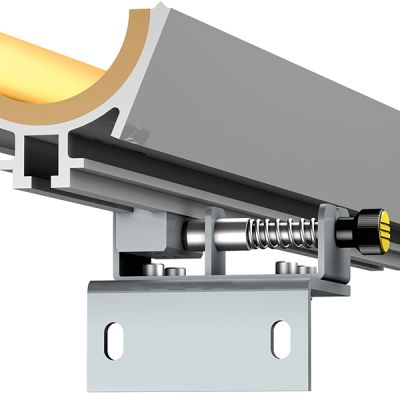

Guidance channels

For the PROFImat, ecoProfi and SiMag loading magazines

Guiding elements for loading magazines

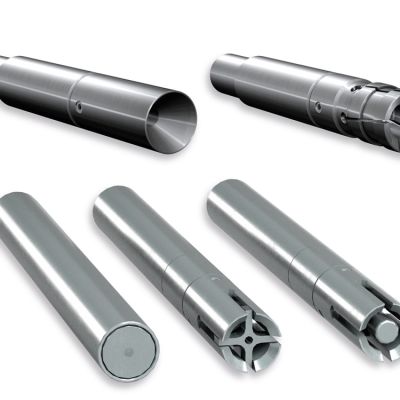

Clamping sleeves and bearings
